  • Denna produkten är för närvarande inte tillgänglig för försäljning
Hem » Megasat » Megasat Countryman GPS plus

Megasat

Megasat Countryman GPS plus

Megasat Countryman GPS plus,Full automatic satellite antenna
:
  • Megasat Countryman GPS plus,Full automatic satellite antenna

    Satellite antenna with GPS receiver and Auto Skew

     The ultra-slim satellite system is suitable for mobile or stationary use and depends fully automatically the desired satellite. The flat design permits, the antenna is ideally positioned on a caravan or motorhome and affect the overall height of the vehicle barely. Despite the small size of the antenna can receive images of the highest quality and fits with the low dimension in any car boot.
    The Megasat Countryman GPS is fitted with connection for satellite set-top box, or a TV with integrated set-top box.

    GPS receiver, Auto Skew and Auto DiSEqC

    The Countryman GPS has an integrated GPS receiverwhich enables seconds positioning.In addition, the antenna is fitted with the Auto Skew function that ensures ideal position of the receiving unit. If you switch to another satellite while “zapping” in the channel list, the antenna automatically corrects the position with the Auto DiSEqC function.



  • Megasat Countryman GPS plus,Full automatic satellite antenna

    • Antenna type: Flat antenna
    • Size of receiving unit: 515 x 275 mm (W/H)
    • Auto Skew function
    • Auto DiSEqC function
    • GPS receiver
    • User: 1
    • LNB Type: Universal Single LNB
    • Frequency Band: Ku Band
    • Frequency range: 10.7 GHz to 12.75 GHz
    • LNB gain: 33.7 dBi
    • Receiving power: 50 dBW
    • Polarization: H / V
    • Motor control: 2-axis DC motor
    • Angle range skew: -45° ~ + 45°
    • Angle range elevation: 15° ~ 90°
    • Angle range azimuth: 360°
    • Temperature range: -30° C to + 60° C



    Preprogrammed satellites:

    • Astra 1 (19,2° East)
    • Astra 2 (23,5° East)
    • Astra 3 (28,2° East)
    • Astra 4 (4,8° East)
    • Hotbird (13° East)
    • Thor (0,8° West)
    • Eutelsat 5 West (5° West)
    • Turksat (42° East)
    • Hispasat (30° West)
    • Eutelsat 9 B (9° East)

    Power supply

    • 12 V DC (max. 30 Watt bei Suchvorgang)

    Logistic Data

    Product:

    • Width: 515 mm
    • Depth: 355 mm
    • Height: 201 mm
    • Weight: 10.3 kg (net)

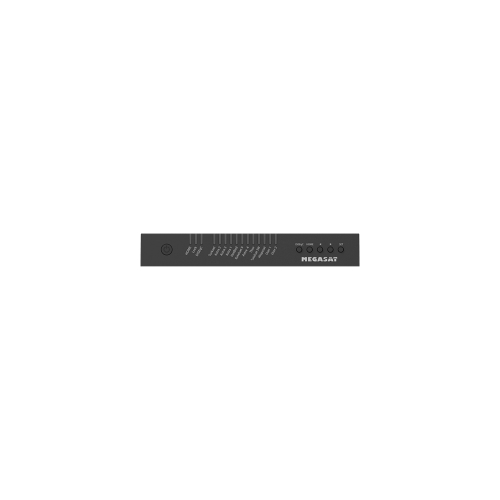

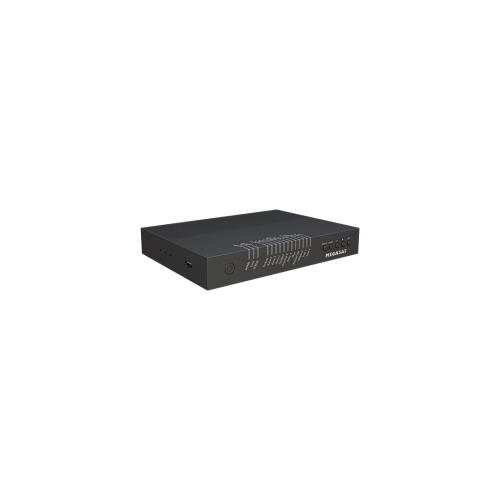

    Control unit:

    • Height: 173 mm
    • Width: 165 mm
    • Depth: 40 mm
    • Weight: 351 g

    Other:

    • Article-No.: 1500170
    • EAN: 4046173107296

    Actual dimensions and weight may vary depending on configuration and manufacturing process.

    Delivery

    • Countryman GPS plus
    • Control unit
    • Holder
    • Mounting plate
    • 12 volt vehicle power cable
    • Control cable 7m
    • Coaxial cable 7m
    • Coaxial cable 1m
    • Base Pads

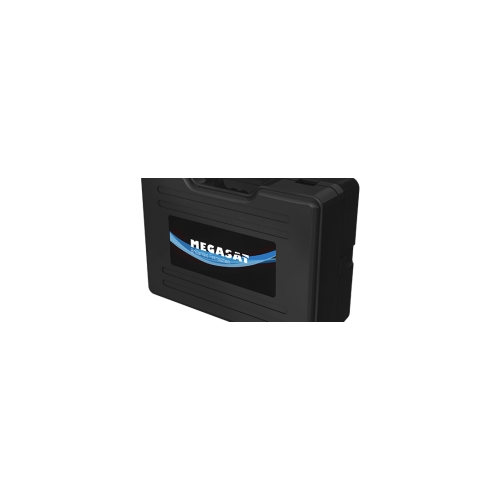

    • Plastic case
    • Allen key
    • Roof outlet
    • Cable gland
    • screw sets
    • User manual
