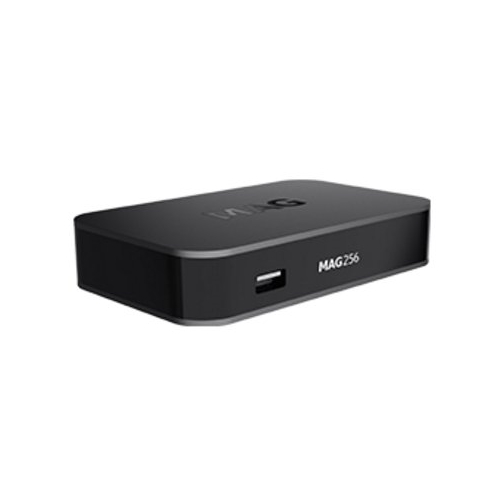

MAG 256 - IPTV OTT Box

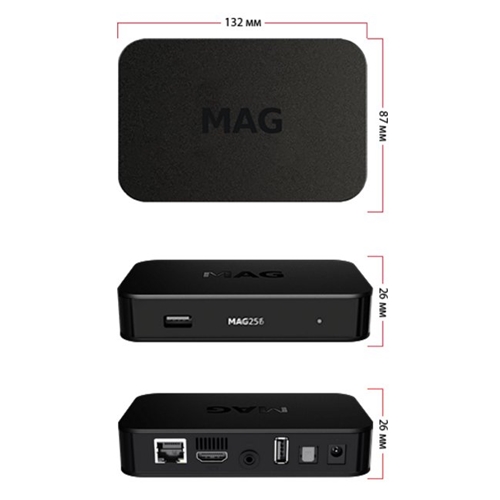

Dimensions(mm): 132x87x26

Weight: 190g

Hardware:

• Chipset: STiH301
• Processor: ARM Cortex A9 1.5 GHz
• Perfomance: 3500 DMIPS
• RAM: 1 GB
• Flash memory: 512 Mb

Software

• Operating system: Linux 3.3
• DRM option: DRM option
• Middleware supported: Stalker

Interfaces

• HDMI 1.4a-output, Composite + stereo A/V output, Audio output S/PDIF, Ethernet 100 Mb/s, USB 2.0 and USB 3.0 (WiFi-adapter can be connected), Built-in WiFi 2.4 GHz/5 GHz ac (optional)

Sources of media content

• PC and NAS in local networ, Stream media protocols (RTSP, RTP, UDP, HTTP), USB-devices

Audio&Video

• Audio ?odecs: MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), MPEG-2 AAC (optional), MPEG-4 AAC LC 2-ch/5.1ch (optional), MPEG-4, AAC+SBR 2-h/5.1ch (optional), Dolby Digital plus (optional), DTS (optional)
• Audio formats: MP3, MPA, M4A, WMA (optional), OGG, WAV, AAC
• Video modes: 1080i, 1080p, 720p, 576p, 480?, PAL, NTSC
• Video ?odecs: MPEG1/2 MP@HL, H.264 HP@level 4.1, H.265 (HEVC), MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; 3D and HD video supporting (up to 40 Mbit/s and above)
• Video containers: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV
• Image formats: JPEG, PNG, BMP, GIF, RAW
• Subtitles: DVB, SRT, text MKV
• Playlist formats: M3U

 Standard set

• MAG256 Set-Top Box, HDMI cable, remote control, 2 AAA batteries, packaging, Power adapter 12 V 1 A, User manual
