Hem » MAG IP-boxar » MAG322w1 IPTV SET-TOP BOX

infomir

MAG322w1 IPTV SET-TOP BOX

MAG322w1 IPTV SET-TOP BOX
Artikelnummer: 14-1642
:
  • MAG322w1 IPTV SET-TOP BOX

    Meet the evolution of MAG254w1!!!


    MAG322w1 is a powerful set-top box containing a high-performance processor on the BCM75839 chipset, and 512MB RAM. It’s the optimal solution for quick launch of your IPTV/OTT project.

    The set-top box is designed to fulfill current market needs. Your customers can enjoy the highest video and sound quality with HDMI 1.4b and S/PDIF outputs. HEVC support will dramatically reduce your network load.

    MAG254w1 and MAG322w1 are fully compatible with the MAG JS API
    BCM75839, Linux 3.3, OpenGL ES 2.0, HEVC, 2x2 USB 2.0



    What is the difference?
    MAG322w1 is a version with a built-in Wi-Fi module of 802.11 b/g/n standard and 150Mbps bit rate. This modification enables users to establish a network connection without additional equipment.



    Useful Features

    • HEVC support

    The set-top box plays the HEVC-compressed files. This means the network load will be lower, even when delivering high-quality content.

    • 3D video support

    The set-top box plays advanced 2D and 3D graphics with OpenGL ES 2.0 support.

    • High-performance

    Modern high-performance processor on the chipset BCM75839 and 512MB RAM is good enough to playback the high-quality video.

    • High quality of sound and image

    The audio output S/PDIF allows connecting the multichannel High-End system to the set-top box. HDMI 1.4b provides the highest quality of sound and image.

  • Mer information

    Specifications

    • Dimensions

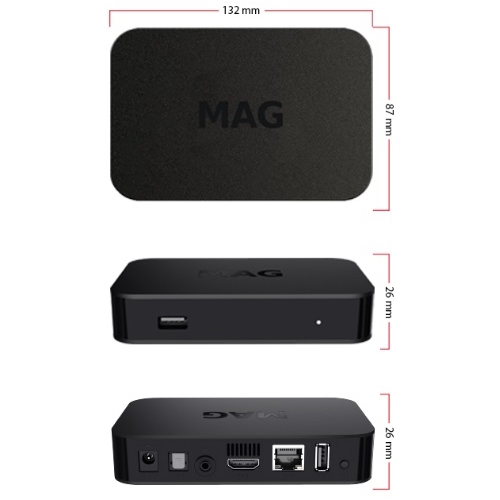

    Width/depth/height, (mm) 132x87x26
    Weight, g 144

    • Hardware

    Chipset BCM75839
    Processor MIPS 4KE Dual Core CPU 750Mhz
    Perfomance 2000 DMIPS
    RAM 512 MB
    Flash memory 512 Mb

    • Software

    Operating system Linux 3.3
    Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK
    Middleware supported Ministra multiscreen TV platform

    • Interfaces

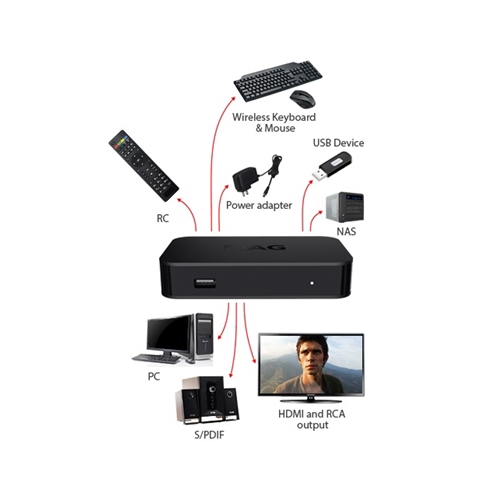

    Audio output S/PDIF, HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s, USB2.0?2

    • Sources of media content

    PC and NAS in local network, Stream media protocols (RTSP,RTP, UDP, IGMP, HTTP), USB-devices

    • Audio & video
      • Audio codecs

    MPEG-1 layer I/II/III, WMA, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital (optional)

      • Audio formats

    MP3, MPA, M4A, WMA, Ogg, WAV

      • Video modes

    1080i, 1080p, 720p, 576p, PAL, NTSC

      • Video ?odecs

    MPEG-1/2, MPEG-4, H.264/AVC HP@L4.2, WMV9, H.265/HEVC Main and Main10 profile up to 1080p at 60 fps, XviD, 3D video support

      • Video containers

    MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV

      • Image formats

    JPEG, PNG, BMP, GIF, RAW

      • Subtitles

    DVB, PGS, SRT, ASS, SUB

      • Playlist formats

    M3U

    • Standard set

    MAG322 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
