Hem » Quattro » Quattro LNB Black Ultra

Inverto

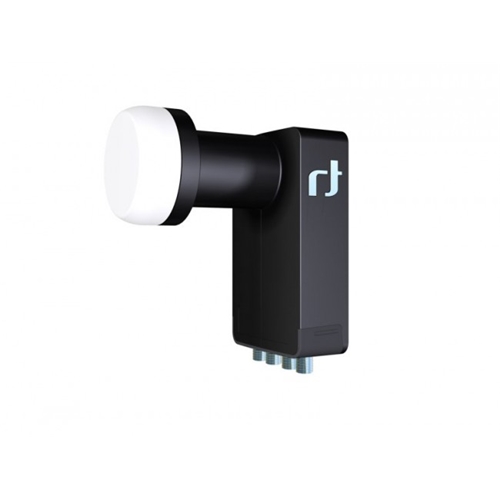

Quattro LNB Black Ultra

Artikelnummer: 14-1323
:
  • Produktinformation

    This LNB is a high performance product addressing the need for superior reception under the edges of the satellite footprint. Thanks to its novel front end design and superior components, this LNB provides higher conversion gain yet with lowest noise figure and best phase noise performance. The combination of higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering spurious. All in all, this LNB provides a leap in the overall reception performance compared with standard LNBs. The LNB enables the reception of signals from one satellite and its distribution via a Multi-Switch to numerous Set Top Boxes and is ready for High Definition transmissions. Designed to meet strict specifications and manufactured to the highest industry quality standards this LNB is an ideal solution for the satellite broadcast reception across Europe.

  • Mer information

    Low Band Input Frequency Range 10.7 ~ 11.7 GHz
    Low Band Output Frequency Range 950 ~ 1950 MHz
    Low Band LO Frequency 9.75 GHz
    High Band Input Frequency Range 11.7 ~ 12.75 GHz
    High Band Output Frequency Range 1100 ~ 2150 MHz
    High Band LO Frequency 10.6 GHz
    Noise Figure 0.2 dB Typ. (0.7 dB Max.)
    LO Initial Accuracy +/- 1.0 MHz Max.
    LO Temperature Drift +/- 3.0 MHz Max.
    Phase Noise (@ 10 kHz) - 90 dBc / Hz Max.
    Conversion Gain 60 dB Min.
    Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
    Gain Variation (Over Full Band)  +/- 4 dB Max.
    Image Rejection 40 dB Min.
    1 dB Compression Point (@ Output) 0.0 dBm Min.
    Cross Polarization Isolation 22 dB Min.
    Output VSWR 2.0 : 1
    In-Band Spurious - 60 dBm Max.
    Current Consumption 200 mA Max. @ 11 ~ 20 V
    Operating Temperature - 30 °C  ~  + 60 °C
    Output Impedance 75 Ω
    Output Connector F-Type (Female)
    Weight 344 g
