Hem » För 1 satposition » MS5/24EIP-6

EMP

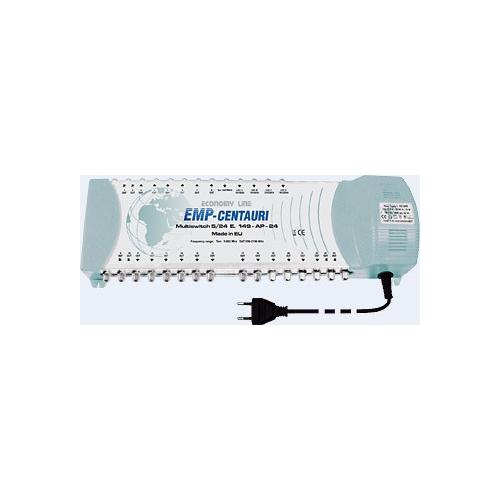

MS5/24EIP-6

Artikelnummer: 14-MS5/24EIP-6
:
  • Produktinformation

    These multiswitches with integrated power supply are designed for use in extended distribution systems, where channels from one satellite position are distributed to 20 - 28 users, together with terrestrial signals. Integrated power supply is protected by a fuse and short-circuit protection. The multi-switch can be used in connection with Dual, Twin or Quatro LNBs.

  • Mer information

  • These multiswitches with integrated power supply are designed for use in extended distribution systems, where channels from one satellite position are distributed to 20 - 28 users, together with terrestrial signals. Integrated power supply is protected by a fuse and short-circuit protection. The multi-switch can be used in connection with Dual, Twin or Quatro LNBs.

    E.149-AP-24 (MS5/24EIP-6)

  • 5in/24out distribution system with passive terrestrial input.


    Specifications of E.149-AP-24 (MS5/24EIP-6)
    Frequency Range LNB-Inputs  950-2150 MHz
    Terr. Input  5-862 MHz
    Outputs  5-2150 MHz
    Control   10-14.5 / 15.5-20 V
    + 0/22 kHz
    Insertion Loss 950-2150 MHz  4 dB avg.
    5-862 MHz  25 dB avg.
    SAT Inputs Isolation   20 dB min.
    Maximum Input Level* Sat.  93 dBµV
    Terr.  110 dBµV
    Power Consumption Without connected LNBs  11 W
    Incl. connected LNBs  45 VA max.
    LNB Power Supply   1600 mA max.
    Dimensions (w,d,h [cm])   43.6 x 15.2 x 8.0
    Temperature range   -25 °C - +60 °C

    *Terr.: EN 50083-3/60dB IMA3 [dBµV]; SAT: EN 50083-3/35dB IMA3 [dBµV]
