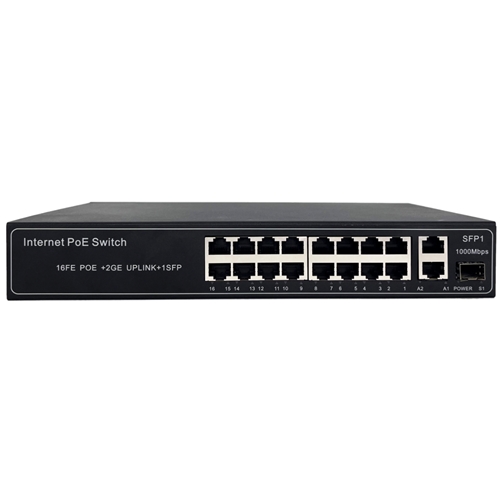

16FE+2GE PoE Switch
Product Description:
FT-1024-P16-1S is a Gigabit uplink unmanaged PoE switch with 16 100Mbps adaptive RJ45 ports and 2 Gigabit adaptive RJ45 ports.
Each rj45 port supports mdi/mdix auto flip and line speed forwarding functions.
where the 100-megaport has a poe power supply function that supports the ieee 802.3af/at standard.
It can be used as an ethernet power supply, which can automatically detect and identify the receiving equipment that meets the standard and power it through the network cable.
19-inch standard rack installation, plug and play, no management, convenient and fast.
Support IEEE 802.3af/ at standard, compatible with IEEE 802.3at's receiving equipment (PD);
Single port output power up to 30W;
Automatic detection and identification standard PoE electrical equipment, intelligent power supply, will not burn non-standard PoE electrical equipment or common equipment;
Support port power priority to ensure continuous power supply to key nodes of the network;
IEEE 802.3x full duplex flow control and Backpressure half duplex flow control;
Panel indicator to monitor working status and help fault analysis;
Product specifications:
Product Name: FT-1024-P16-1S
Ports: 16x10/100Mbps RJ45 port 2*100/1000Mbps 1*1000Mbps SFP
PoE Standard: IEEE802.3af/at
PoE Port: Port 1~16
Power supply: 180W MAX240 W
RJ45 PoE Power Supply: Mode A positive electrode 1/2 negative electrode 3/6 (Custom power supply mode 4 / 5 V + 7 / 8 V-)
PoE port output: Maximum 15.4 W/30W
Type of forwarding: Storage forwarding
Exchange capacity: 10G
MAC Address Table: 1K, automatic learning, automatic aging
VLan / 250extend: Support customization
Input voltage: AC 100-240V 50/60Hz
Working temperature: 0~40
Storage temperature: -40~70
Working humidity: 10%-90% RH does not clot
Storage humidity: 5%-90% RH does not clot
Appearance Size (L*W*H): 280 *180 *44 mm （285x205x90mm）
Machine weight: Product weight(1.28Kg) , Packing weight (1.61Kg)
Package specification: 12SET W*D*H 585*430*300 21Kg
Network media: 10BASE-T: Cat 3,4,5 unshielded twisted pair (£100m) 100BASE-TX: Cat5 and above unshielded twisted pair (£100m)
Lightning Level: ±4KV
authentication: CE FCC
