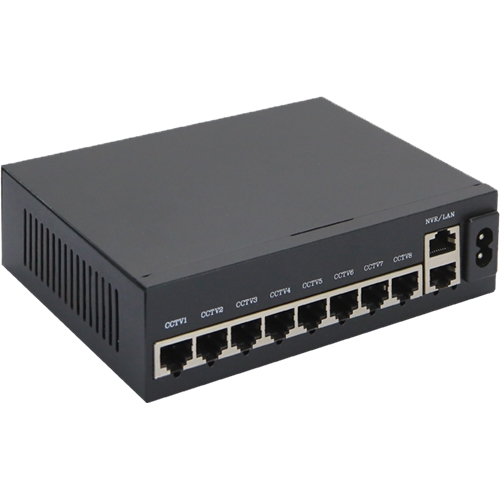

8FE (PoE)+2FE PoE Switch
Product Overview:
8FE (PoE)+2FE PoE is a non-managed PoE switch with eight 100-megabit adaptive RJ45 ports and two Gigabit RJ45 ports.
Each RJ45 port supports mdi/mdix auto flip and line speed forwarding functions.
Among them,1-8 ports have poe power supply function, support iee 802.3af/at standard, can be used as ethernet power supply equipment, can automatically detect and identify the receiving equipment that meets the standard, and supply power to it through the network cable.
Using storage forwarding technology, combined with dynamic memory allocation, the bandwidth is effectively allocated to each port.
8FE (PoE)+2FE PoE Switch is easy to use, no configuration, plug and play, flexible expansion of home, office network without power line layout restrictions, easy to manage and maintain, to meet the enterprise, residential, hotel, office and park network networking and access requirements.
Product characteristics:
Support IEEE 802.3af standard, compatible with IEEE 802.3at receiving equipment (PD);
The maximum output power of a single port is 15.4 W;
Automatic PD detection equipment;
Automatic detection and identification standard PoE electrical equipment, intelligent power supply, will not burn non-standard PoE electrical equipment or common equipment;
IEEE 802.3x full duplex flow control and Backpressure half duplex flow control;
Iron shell, no fan;
panel indicator to monitor working status and help fault analysis;
Perfect security mechanism;
Line Speed Forwarding Intelligent identification;
Data exchange adopts storage-forwarding mode;
Working temperature:0°C ~40°C;
Product specifications:
Product Name: 8FE (Poe)+2FE Poe Switch
Ports: 8x10/100Mbps self-negotiated RJ45 port
2x10/100/1000Mbps self-negotiated RJ45 port
PoE Standard: IEEE802.3af/at
PoE Port: Port 1~8
PoE Total: 120W
Power supply: 144 W
RJ45 PoE Power Supply: Mode A positive electrode 1/2 negative electrode 3/6
PoE port output: Maximum 15.4 W
Type of forwarding: Storage forwarding
Exchange capacity: 1.6 Gbps
MAC Address Table: 1K, automatic learning, automatic aging
Giant frames: 9216 Byte
Package buffer: 2 M bit
Forwarding rate: 4.16Mpps
Input voltage: 100-240V AC 50/60HZ
Working temperature: 0~40
Storage temperature: -40~70
Working humidity: 10%-90% RH does not clot
Storage humidity: 5%-90% RH does not clot
Appearance Size (L*W*H): 155 *118 *45 mm
Machine weight: >0.8 Kg
Lightning Level: ±4KV
Electrostatic standards: Contact with 6KV, Air 8KV
